Product Overview

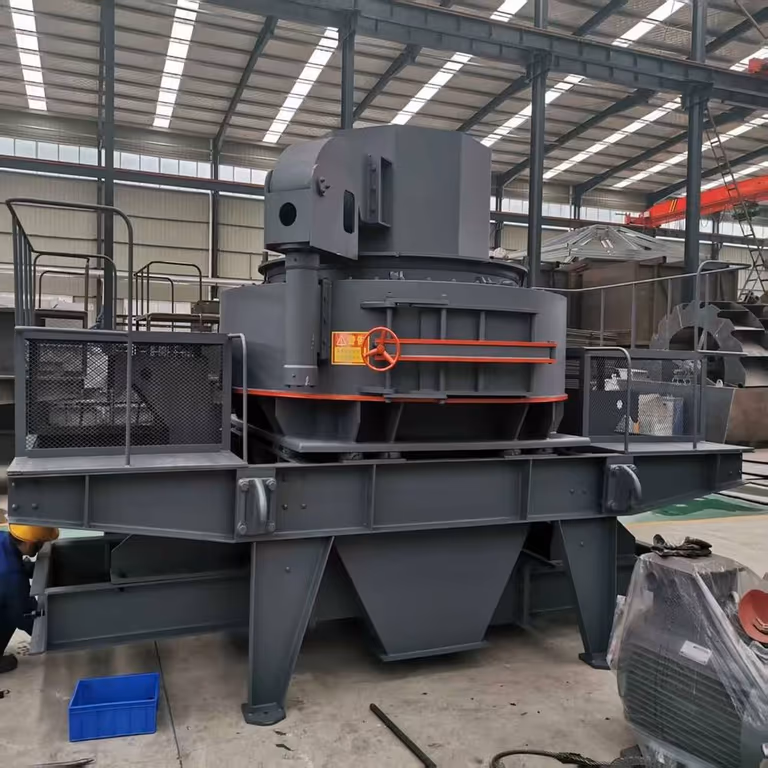

The VSI Series high-efficiency vertical shaft impact crusher is a high-performance sand making machine designed by combining industry-leading technology with extensive field experience. It adopts a unique rotor structure, wear-resistant material technology, optimized crushing speed and hydraulic design, making it the model of professional fine crushing combined with machinery manufacturing.
Complete Model Range & Technical Specifications
| Model | Rotor Dia (mm) | Max Feed (mm) | Capacity (t/h) | Motor (kW) |
|---|---|---|---|---|
| VSI-7611 | 760 | 35 | 60-120 | 90-180 |
| VSI-8518 | 850 | 40 | 120-200 | 180-264 |
| VSI-9526 | 950 | 45 | 200-300 | 264-320 |
| VSI-1140 | 1140 | 50 | 300-500 | 320-440 |
Capacity depends on material and rotor speed. Custom models available on request.
Applications
Specially designed to provide high-quality sand and gravel aggregates for highways, high-speed railways, high-rise buildings, municipal works, hydro-power dam construction and concrete mixing stations. It is the preferred equipment in artificial sand making and stone shaping.
Key Features
- Produces ideal manufactured sand products and concrete aggregates
- High-quality cubic-shaped gravel with reasonable grading
- Wear-resistant parts extend service life and reduce cost
- Rare oil lubrication with automatic protection
- Simple structure, stable operation and easy maintenance
