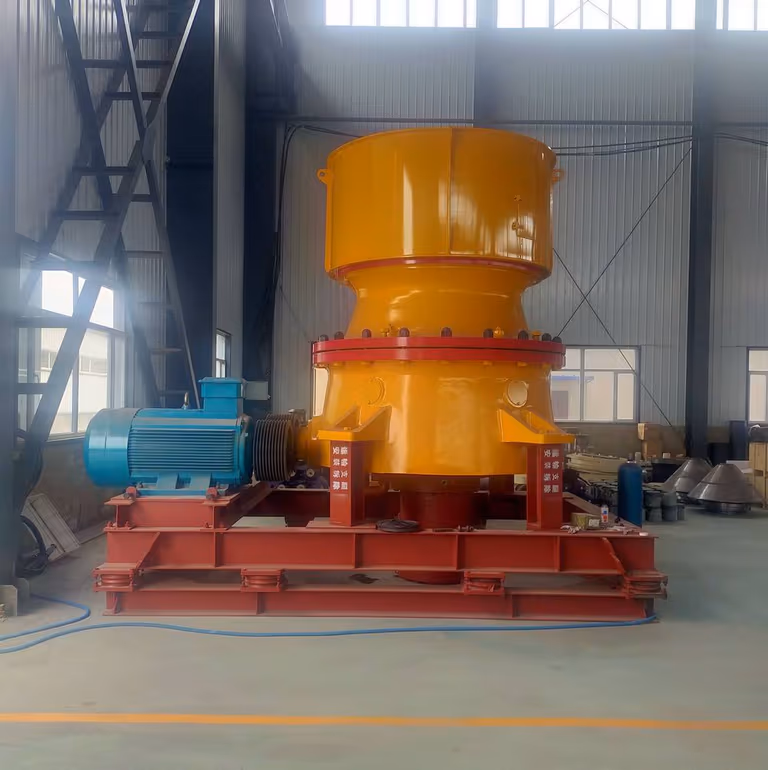

GP Series Single Cylinder Hydraulic Cone Crusher

Name: GP Series Single Cylinder Hydraulic Cone Crusher
Brand: DC Machinery
SKU: GP-SERIES-SINGLE-CYLINDER-CONE-CRUSHER
Availability: InStock

GP series single-cylinder hydraulic cone crusher, models GP100-GP500 in fine and coarse types with cavity options A-D. High capacity, low operating cost and simple maintenance.

Quick Facts

Models:GP100, GP200, GP300, GP500Max Feed Size (mm):32 ~ 500Capacity (t/h):30 ~ 1000Motor Power (kW):90 ~ 315

Send your requirements for a tailored quotation - our engineers reply within 24 hours with price, lead time and technical drawings.

Request a Quote Zalo WhatsApp Telegram Email Us

Technical Specifications

Models	GP100, GP200, GP300, GP500
Types	Fine (细碎型) & Coarse (粗碎型)
Cavity Types	A, B, C, D
Max Feed Size (mm)	32 ~ 500
Capacity (t/h)	30 ~ 1000
Motor Power (kW)	90 ~ 315
Host Weight (t)	6 ~ 33

Product Description

Product Overview

The GP Series single-cylinder hydraulic cone crusher is widely used in mining, smelting, building materials, highways, water conservancy and chemical industries for medium, fine or ultra-fine crushing of ores, rocks and rock-base materials. Available in fine (细碎型) and coarse (粗碎型) configurations with multiple cavity options (A-D).

Fine Type (细碎型) - Complete Model Range

Model	Cavity	Feeding Port (mm)	Max Feed Size (mm)	Motor (kW)	Host Weight (t)
GP100	A	150	120	90	6
GP100	B	130	105	90	6
GP100	C	100	85	90	6
GP100	D	40	32	90	6
GP200	A	220	180	160	10.6
GP200	B	150	120	160	10.6
GP200	C	80	60	160	10.6
GP200	D	40	32	160	10.6
GP300	A	230	190	250	15.5
GP300	B	150	125	250	15.5
GP300	C	80	60	250	15.5
GP300	D	40	32	250	15.5
GP500	A	230	180	315	22.5
GP500	B	150	125	315	22.5
GP500	C	100	80	315	22.5
GP500	D	50	40	315	22.5

Coarse Type (粗碎型) - Complete Model Range

Model	Cavity	Feeding Port (mm)	Max Feed Size (mm)	Motor (kW)	Host Weight (t)
GP100	A	300	250	90	8.3
GP100	B	250	210	90	8.3
GP200	A	330	280	160	11.8
GP200	B	250	210	160	11.8
GP300	A	380	320	250	20
GP300	B	280	240	250	20
GP500	A	500	420	315	33
GP500	B	380	320	315	33

Capacity varies with tight-edge discharge opening (8-75 mm). Full capacity curves available on request.

Applications

Suitable for secondary and tertiary crushing of granite, basalt, iron ore, limestone and other materials. The medium-crushing cavity has a stable and large feed opening and can even be used for coarse crushing in large plants.

Key Features

Wide application range with multiple cavity options on the same machine
Optimized crushing chamber improves throughput and extends liner life
Laminated crushing delivers well-shaped products
Hydraulic stepless discharge adjustment with simple button control
High degree of automation and easy, low-cost maintenance

Key Highlights

Wide range of applications - medium, fine and ultra-fine crushing of ores and rocks
Multiple cavity types by changing the liner on the same host
Optimized crushing cavity increases output and extends liner life
Button-controlled hydraulic stepless discharge adjustment during operation
All maintenance done after removing the upper frame - quick and convenient

Recommended Wear Parts & Spares

Keep this machine running at full capacity with OEM-grade wear parts:

Cone Crusher Distributor Plate Crusher Bearings (Eccentric & Frame)Crusher V-Belts Cone Crusher Mantle Cone Crusher Adjustment Sleeve Cone Crusher Seal Ring

Product FAQ

What is the capacity range of GP series cone crushers?

GP series single-cylinder cone crushers produce from 45 to 1200 tons per hour depending on the model, chamber profile and closed-side setting.

Which materials are GP cone crushers suitable for?

They crush granite, basalt, diabase, ore and other hard abrasive rock, and are widely used for secondary, tertiary and fine crushing.

How does the single-cylinder hydraulic adjustment work?

The hydraulic cylinder raises or lowers the main shaft to adjust the discharge opening, making setting changes quick and safe. The hydraulic system also provides overload protection against tramp material.

What chamber options are available?

Coarse, medium and fine chambers are available to match your feed size and product requirement. We can also supply manganese liners to suit your application.
