Product Overview

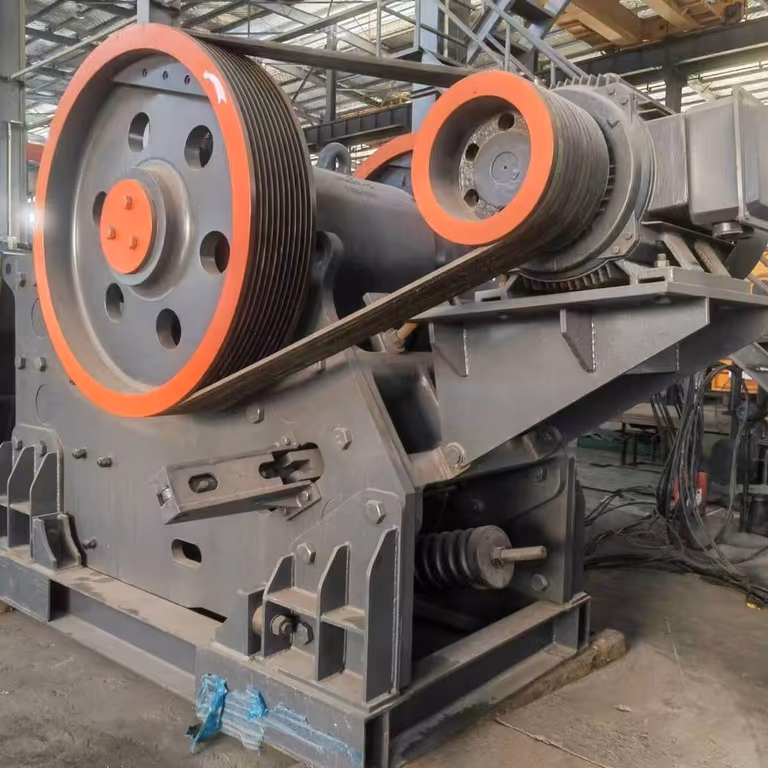

The C Series jaw crusher is a new generation primary crusher engineered for the hardest and most abrasive rocks. Compared with the traditional PE series, the crushing cavity, materials and bearing standards have been completely upgraded, increasing output by more than 30% while reducing unit operating cost by over 20%.
Complete Model Range & Technical Specifications
| Model | Feed Width (mm) | Feed Depth (mm) | Max Feed (mm) | Motor (kW) | Speed (r/min) | Capacity (t/h) | Discharge (mm) | Equipment Size (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| C96 | 930 | 580 | 460 | 90 | 330 | 120-455 | 60-175 | 2830×1983×1924 | 11353 |
| C106 | 1100 | 630 | 530 | 110 | 280 | 170-330 | 110-170 | 3346×2111×2376 | 18700 |
| C110 | 1100 | 850 | 680 | 160 | 230 | 190-625 | 70-200 | 3890×2374×2836 | 26150 |
| C125 | 1250 | 950 | 760 | 160 | 220 | 290-845 | 100-250 | 4111×2596×2952 | 39239 |
| C160 | 1600 | 1200 | 960 | 250 | 220 | 520-1275 | 150-300 | 5690×3318×3843 | 79993 |
Applications
Ideal for primary crushing of the hardest and most abrasive rocks such as granite, basalt, iron ore and quartzite in metal mines and stone processing plants, as well as large aggregate production lines.
Key Features
- No-weld bolted frame avoids stress concentration and extends equipment life
- Large eccentric throw and steep toggle plate design for effective stroke at the cavity bottom
- Wide range of discharge settings - hydraulic adjustment for convenience and stability
- High-quality cast steel side plates, jaw plates, bearings and main shaft
- Simple foundation, quick and practical installation
