Product Overview

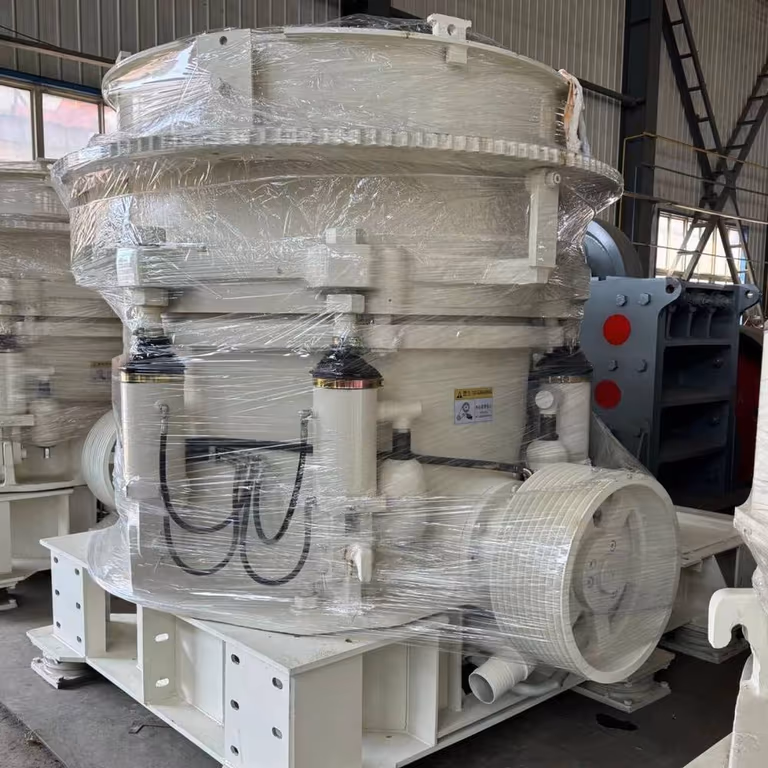

The HP Series multi-cylinder hydraulic cone crusher is a new generation cone crusher developed for high-hard materials, based on the comprehensive experience of spring cone crushers combined with new technology and materials. It perfectly combines crushing speed, stroke and crushing cavity to improve production capacity, product quality and application range.
Complete Model Range & Technical Specifications
| Model | Cavity | Standard Feeding (mm) | Standard Discharging (mm) | Short-head Feeding (mm) | Short-head Discharging (mm) | Motor (kW) | Capacity (t/h) | Main Weight (t) | Total Weight (t) |
|---|---|---|---|---|---|---|---|---|---|
| HP200 | 超粗 BC | - | - | - | - | 132-200 | 90-250 | 11.14 | 14 |
| HP200 | 粗 C | - | - | 76 | 10 | 132-200 | 90-250 | 11.14 | 14 |
| HP200 | 中 m | - | - | 54 | 6 | 132-200 | 90-250 | 11.14 | 14 |
| HP200 | 细 F | - | - | 23 | 6 | 132-200 | 90-250 | 11.14 | 14 |
| HP200 | 超细 BF | - | - | 10 | 5 | 132-200 | 90-250 | 11.14 | 14 |
| HP300 | 超粗 BC | - | - | - | - | 180-250 | 110-440 | 15.8 | 19.96 |
| HP300 | 粗 C | - | - | 75 | 10 | 180-250 | 110-440 | 15.8 | 19.96 |
| HP300 | 中 m | - | - | 50 | 8 | 180-250 | 110-440 | 15.8 | 19.96 |
| HP300 | 细 F | - | - | 20 | 6 | 180-250 | 110-440 | 15.8 | 19.96 |
| HP300 | 超细 BF | - | - | 20 | 6 | 180-250 | 110-440 | 15.8 | 19.96 |
| HP400 | 超粗 BC | 295 | 30 | - | - | 280-355 | 140-630 | 23 | 28.72 |
| HP400 | 粗 C | 250 | 25 | 90 | 10 | 280-355 | 140-630 | 23 | 28.72 |
| HP400 | 中 m | 195 | 20 | - | - | 280-355 | 140-630 | 23 | 28.72 |
| HP400 | 细 F | 110 | 14 | 185 | 19 | 280-355 | 140-630 | 23 | 28.72 |
| HP400 | 超细 BF | - | - | 125 | 17 | 280-355 | 140-630 | 23 | 28.72 |
| HP500 | 超粗 BC | 330 | 30 | 95 | 13 | 355-450 | 175-790 | 33.3 | 38 |
| HP500 | 粗 C | 285 | 25 | - | - | 355-450 | 175-790 | 33.3 | 38 |
| HP500 | 中 m | 200 | 20 | 230 | 25 | 355-450 | 175-790 | 33.3 | 38 |
| HP500 | 细 F | 133 | 16 | 210 | 20 | 355-450 | 175-790 | 33.3 | 38 |
| HP500 | 超细 BF | - | - | 150 | 15 | 355-450 | 175-790 | 33.3 | 38 |
| HP800 | 超粗 BC | 353 | 32 | 105 | 10 | 550-630 | 260-1200 | - | - |
| HP800 | 粗 C | 297 | 32 | 155 | 13 | 550-630 | 260-1200 | - | - |
| HP800 | 中 m | 267 | 25 | 92 | 10 | 550-630 | 260-1200 | - | - |
| HP800 | 细 F | 219 | 16 | 33 | 6 | 550-630 | 260-1200 | - | - |
| HP800 | 超细 BF | - | - | - | - | 550-630 | 260-1200 | - | - |
Standard type and short-head type configurations shown. Capacity varies with discharge setting and material.
Applications
Widely used as secondary, tertiary and ultra-fine crusher for granite, basalt, diabase, iron ore and other high-hard ores in mining, aggregate, sand-making and construction industries.
Key Features
- Higher production - higher speed and stroke greatly improve rated power and throughput
- Laminated crushing design gives uniform, cubic product with high content of qualified material
- Flexible cavity conversion by changing cavity liners
- Automatic iron crossing protection with hydraulic cavity cleaning reduces downtime
- Easy maintenance - all parts can be disassembled from the top or side
