Product Overview

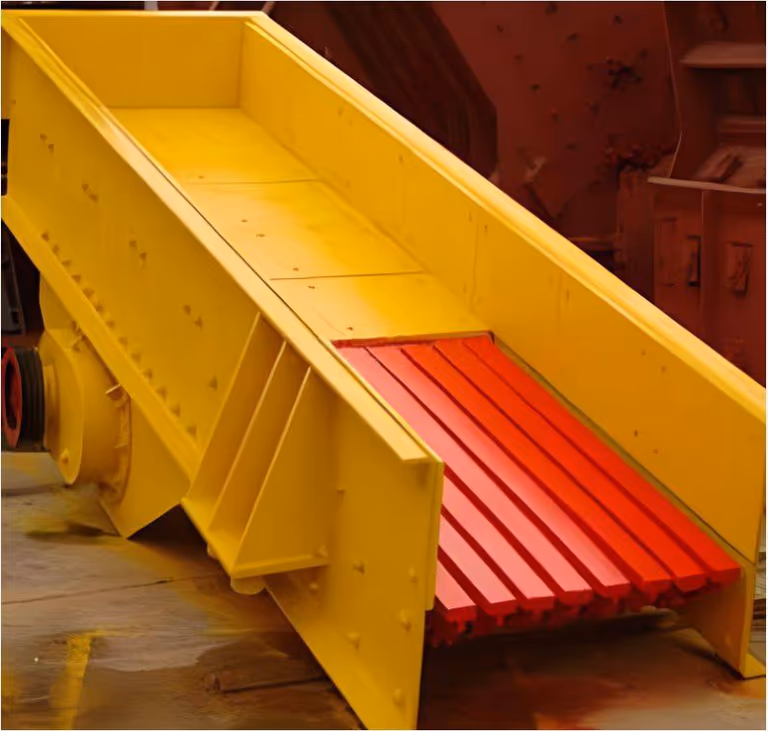

The ZSW vibrating feeder delivers lump and granular material from the storage bin to the receiving device evenly, regularly and continuously. In sand and gravel production lines it feeds crushing machinery continuously and evenly while performing coarse screening, making the system more economical and reasonable.
Complete Model Range & Technical Specifications
| Model | Chute Size (mm) | Max Feed (mm) | Capacity (t/h) | Motor (kW) | Weight (kg) | Overall Dimensions (mm) |
|---|---|---|---|---|---|---|
| ZSW380*95 | 3800*950 | 500 | 96-160 | 11 | 4082 | 3882*2224*2121 |
| ZSW490*95 | 4900*950 | 500 | 120-240 | 15 | 5004 | 4957*2277*2150 |
| ZSW490*110 | 4900*1100 | 580 | 120-280 | 15 | 5320 | 4957*2400*2150 |
| ZSW590*110 | 5900*1100 | 600 | 200-350 | 22 | 6130 | 6000*2500*2150 |
| ZSW600*130 | 6000*1300 | 750 | 400-560 | 22 | 7800 | 6082*2580*2083 |
| ZSW600*150 | 6000*1500 | 1000 | 800 | 30 | 12110 | 6627*2350*3068 |
| ZSW600*200 | 6000*2000 | 1000 | 1200 | 37 | 18650 | 6436*3853*3014 |
Applications
Widely used in combined crushing and screening equipment in metallurgy, coal mines, mineral processing, building materials, chemicals and abrasives industries.
Key Features
- Smooth and stable vibration with reliable operation
- Special grid bars prevent material blockage
- Adjustable grid gaps for coarse screening
- Low noise, low energy consumption and long service life
- Light weight, compact size and easy installation
