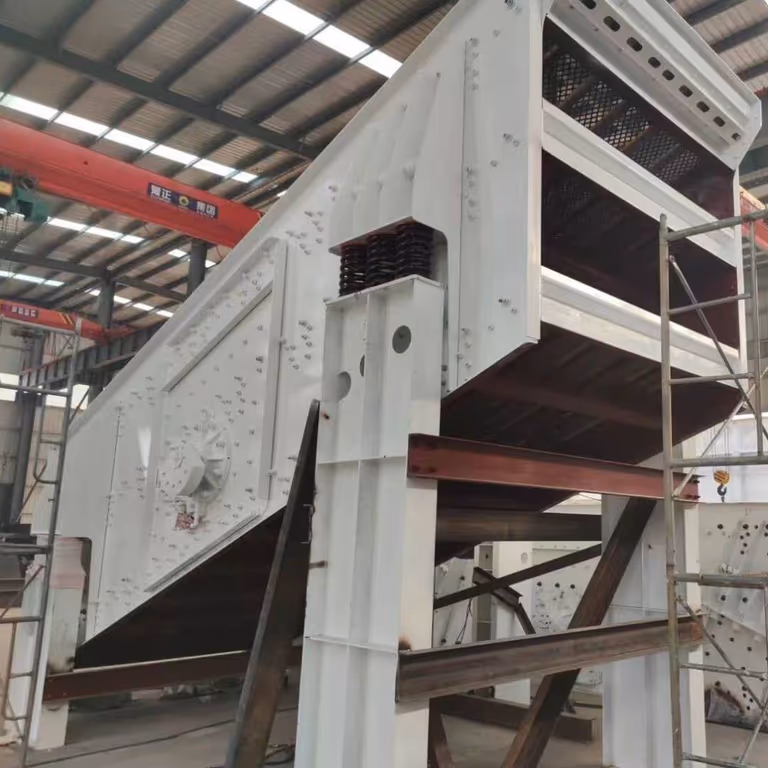

Product Overview
The YK Series circular vibrating screen features a novel structure, strong exciting force, large processing capacity, high screening efficiency and low vibration noise. New design and sophisticated manufacturing make this series durable and easy to maintain - the latest generation of screening equipment specially designed for metal mines and sand and gravel plants.
Complete Model Range & Technical Specifications
| Model | Layers | Screen Size (mm) | Max Feed (mm) | Capacity (t/h) | Vibration (r/min) | Double Amplitude (mm) | Motor (kW) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| YK1236 | 1 | 1200×3000 | 100 | 20-150 | 740 | 8 | 7.5 | 3540 |
| 2YK1236 | 2 | 1200×3000 | 100 | 30-150 | 740 | 8 | 7.5 | 3820 |
| 3YK1236 | 3 | 1200×3000 | 100 | 50-150 | 740 | 8 | 11 | 5230 |
| YK1545 | 1 | 1500×4500 | 200 | 30-200 | 740 | 8 | 11 | 4200 |
| 2YK1548 | 2 | 1500×4800 | 200 | 35-200 | 740 | 8 | 15 | 4850 |
| 3YK1548 | 3 | 1500×4800 | 200 | 50-200 | 740 | 8 | 18.5 | 5950 |
| 4YK1548 | 4 | 1500×4800 | 200 | 80-200 | 740 | 8 | 22 | 7150 |
| YK1854 | 1 | 1800×5400 | 200 | 42-250 | 740 | 8 | 18.5 | 6500 |
| 2YK1854 | 2 | 1800×5400 | 200 | 42-250 | 740 | 8 | 18.5 | 8085 |
| 3YK1854 | 3 | 1800×5400 | 200 | 42-250 | 740 | 8 | 22 | 8940 |
| 4YK1854 | 4 | 1800×5400 | 200 | 42-250 | 740 | 8 | 30 | 10940 |
| 2YK1860 | 2 | 1800×6000 | 200 | 45-250 | 740 | 8 | 22 | 7550 |
| 3YK1860 | 3 | 1800×6000 | 200 | 45-250 | 740 | 8 | 22 | 9150 |
| 4YK1860 | 4 | 1800×6000 | 200 | 45-250 | 740 | 8 | 30 | 10800 |
| 2YK2160 | 2 | 2100×6000 | 200 | 100-400 | 740 | 8 | 30 | 7950 |
| 3YK2160 | 3 | 2100×6000 | 200 | 130-400 | 740 | 8 | 30 | 9550 |
| 4YK2160 | 4 | 2100×6000 | 200 | 150-400 | 740 | 8 | 37 | 11350 |
| 2YK2460 | 2 | 2400×6000 | 200 | 150-500 | 740 | 8 | 37 | 8050 |
| 3YK2460 | 3 | 2400×6000 | 200 | 150-600 | 740 | 8 | 37 | 10700 |
| 4YK2460 | 4 | 2400×6000 | 200 | 150-600 | 740 | 8 | 45 | 12750 |
| 2YK2470 | 2 | 2400×7000 | 200 | 150-500 | 740 | 8 | 37 | 11800 |
| 3YK2470 | 3 | 2400×7000 | 200 | 150-600 | 740 | 8 | 37 | 11350 |
| 4YK2470 | 4 | 2400×7000 | 200 | 150-600 | 740 | 8 | 45 | 13500 |
| 2YK2470 | 2 | 2400×7000 | 200 | 250-700 | 740 | 8 | 2×30 | 12800 |
| 3YK2470 | 3 | 2400×7000 | 200 | 300-700 | 740 | 8 | 2×30 | 13250 |
| 4YK2470 | 4 | 2400×7000 | 200 | 300-700 | 740 | 8 | 2×30 | 14750 |
| 2YK2870 | 2 | 2800×7000 | 200 | 250-650 | 740 | 8 | 2×30 | 15000 |
| 3YK2870 | 3 | 2800×7000 | 200 | 300-800 | 740 | 8 | 2×37 | 17780 |
| 4YK2870 | 4 | 2800×7000 | 200 | 300-800 | 740 | 8 | 2×45 | 18650 |
| 2YK3072 | 2 | 3000×7200 | 200 | 350-800 | 740 | 8 | 2×30 | 15750 |
| 3YK3072 | 3 | 3000×7200 | 200 | 400-900 | 740 | 8 | 2×37 | 18750 |
| 4YK3072 | 4 | 3000×7200 | 200 | 400-900 | 740 | 8 | 2×45 | 23950 |
| 2YK3672 | 2 | 3600×7200 | 200 | 500-1500 | 740 | 8 | 2×37 | 19650 |
| 3YK3672 | 3 | 3600×7200 | 200 | 600-1500 | 740 | 8 | 2×45 | 22980 |
| 4YK3672 | 4 | 3600×7200 | 200 | 800-1500 | 740 | 8 | 2×55 | 26550 |
Applications
Widely used for screening and grading in aggregate production, mining, coal preparation, building materials and chemical industries, with 1 to 4 layers available.
Key Features
- Eccentric shaft plus eccentric block excitation with adjustable force
- Vibrator with oil lubrication, external block eccentric structure
- Integral vibrator assembly for fast maintenance and replacement
- Side plates and beams joined by high-strength bolts without welding
- Rubber spring damping and flexible coupling reduce noise and impact
