Product Overview
The CH/CS series single-cylinder hydraulic cone crusher combines proven crushing technology with a simple single-cylinder hydraulic design. The CS type offers three standard crushing cavities, while the CH type provides a wide range of cavities from extra-fine (EF) to extra-coarse (EC), allowing the crusher to be matched precisely to each application for maximum output and product quality.

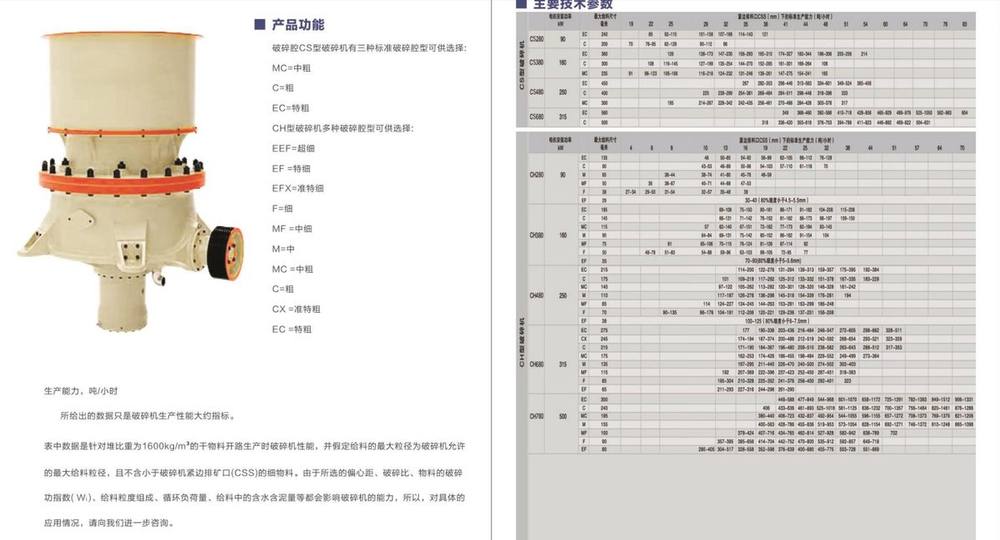

Complete Model Range & Technical Specifications
| Model | Max Feed (mm) | Capacity (t/h) | Motor (kW) |
|---|---|---|---|
| CH420 | 155 | 35-90 | 90 |
| CH430 | 185 | 35-120 | 132 |
| CH440 | 215 | 65-330 | 220 |

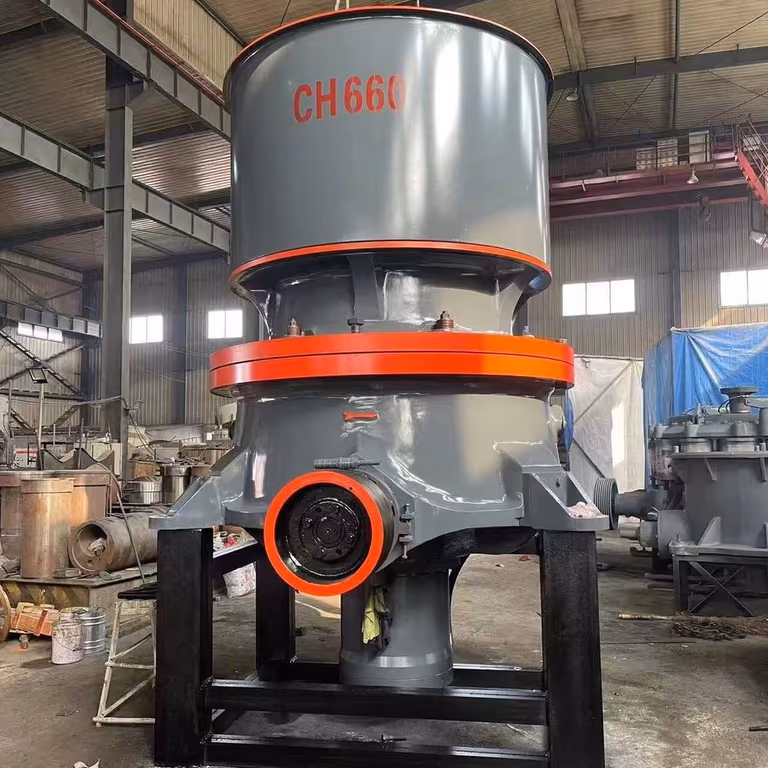

| CH660 | 275 | 80-550 | 315 |
| CH870 | 300 | 100-810 | 500 |
| CH890 | 330 | 200-1100 | 600 |
| CS420 | 155 | 35-90 | 90 |
| CS430 | 185 | 35-120 | 132 |
| CS440 | 215 | 65-330 | 250 |
| CS660 | 275 | 80-550 | 315 |
Capacity is an approximate indicator for dry material with bulk density 1600 kg/m3 in open circuit. Actual capacity varies with eccentric throw, crushing ratio, feed grading, moisture and circulating load.
Crushing Cavity Options
CH type: EF (extra fine), EF× (super extra fine), MF (medium fine), M (medium), MC (medium coarse), CX (extra coarse), EC (extra coarse) - multiple cavities for fine to coarse crushing.
CS type: three standard crushing cavities (including MC medium-coarse) for conventional secondary and tertiary applications.
Applications
Ideal for secondary, tertiary and quaternary crushing of granite, basalt, iron ore, limestone and other hard rocks in mining, aggregate production, metallurgy, building materials and construction waste recycling.
Key Features
- Multiple cavity options let the same crusher handle fine to coarse applications
- Single-cylinder hydraulic design - simple structure and reliable operation
- Hydraulic discharge adjustment and cavity clearing reduce downtime
- High crushing efficiency with uniform, well-shaped products
- Low operating cost and easy maintenance
