Product Overview

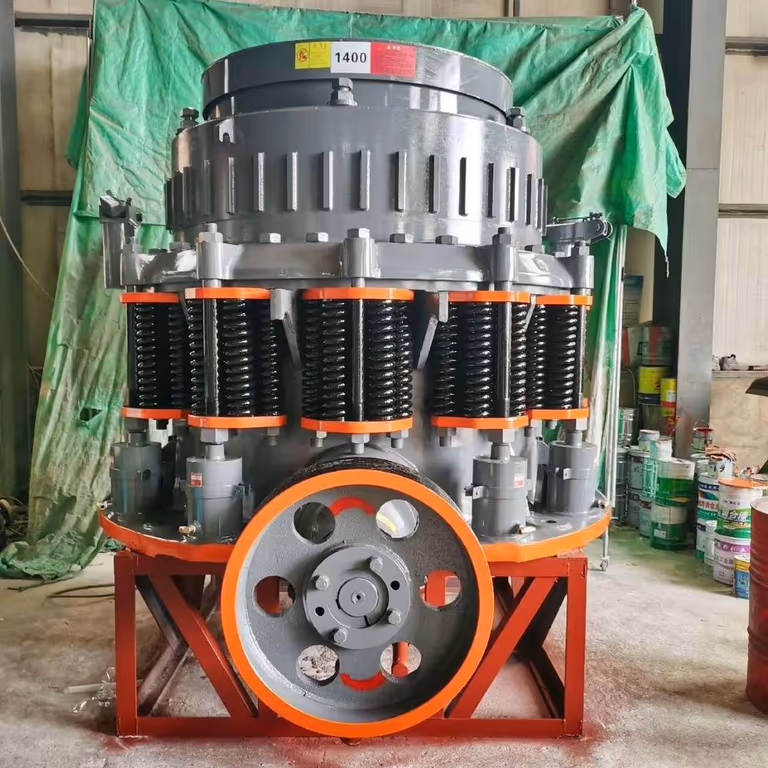

The high-efficiency compound spring cone crusher is a new product developed by combining domestic and international optimization in medium and fine crushing technology. Its performance has reached an advanced level at home and abroad. The DC series cone crusher is an efficient, energy-saving, economical and easy-to-maintain machine, widely used in metallurgy, building materials, construction waste treatment and other industries. It is suitable for crushing all kinds of ores and rocks with high hardness.

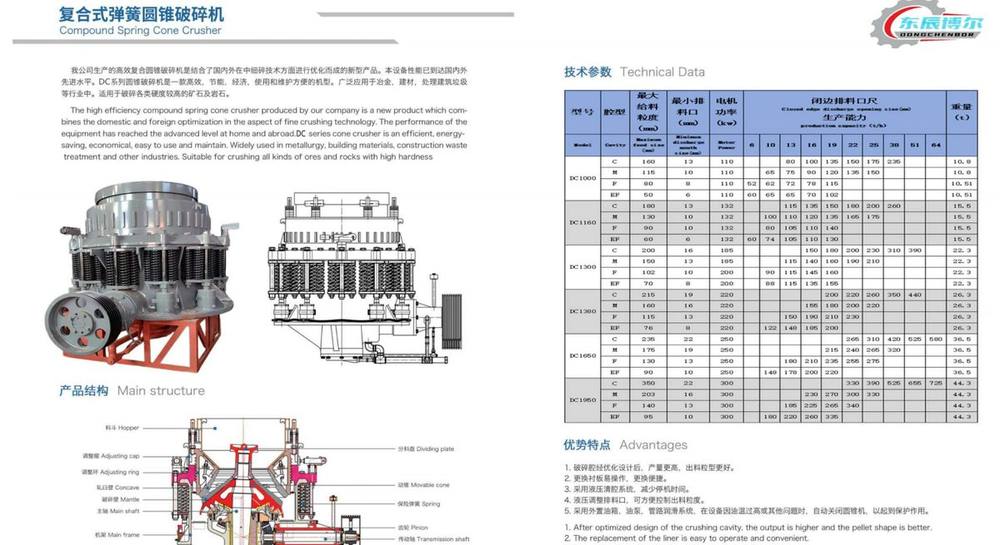

Complete Model Range & Technical Specifications (DC Series)
| Model | Cavity | Max Feed (mm) | Discharge (mm) | Capacity (t/h) | Motor (kW) | Weight (t) |
|---|---|---|---|---|---|---|
| DC1000 | Fine | 95 | 8-25 | 45-120 | 110 | 20 |
| DC1000 | Coarse | 160 | 19-51 | 90-180 | 110 | 20 |
| DC1200 | Fine | 115 | 8-25 | 60-150 | 132 | 25 |
| DC1200 | Coarse | 180 | 22-51 | 130-260 | 132 | 25 |
| DC1300 | Fine | 130 | 8-25 | 90-200 | 200 | 35 |
| DC1300 | Coarse | 200 | 22-51 | 150-320 | 200 | 35 |
| DC1400 | Fine | 150 | 10-25 | 120-250 | 220 | 36 |
| DC1400 | Coarse | 230 | 25-64 | 200-420 | 220 | 36 |
| DC1500 | Fine | 160 | 10-32 | 150-300 | 250 | 51 |
| DC1500 | Coarse | 250 | 25-64 | 250-500 | 250 | 51 |
| DC1650 | Fine | 180 | 13-38 | 200-400 | 300 | 39 |
| DC1650 | Coarse | 260 | 32-64 | 300-600 | 300 | 48 |
| DC1950 | Fine | 220 | 16-38 | 300-600 | 300 | 68 |
| DC1950 | Coarse | 320 | 38-76 | 450-800 | 400 | 68 |
Capacity depends on feed size, material hardness and discharge setting. Standard (PYB), medium (PYZ) and short-head (PYD) cavity options available.
Applications
Ideal for secondary and tertiary crushing of granite, basalt, iron ore, limestone and other high-hardness ores and rocks in mining, metallurgy, building materials, highway, railway and construction waste recycling industries.
Key Features
- Optimized crushing cavity design - higher output and better particle shape
- Easy liner replacement for convenient maintenance
- Hydraulic cavity-clearing system reduces downtime
- Hydraulic discharge opening adjustment controls product size
- External oil tank, pump and pipeline lubrication system with automatic shutdown protection on over-temperature or other faults
Working Principle
The motor drives the eccentric sleeve to swing the main shaft, so the crushing wall periodically approaches and leaves the concave, crushing material between them. Products discharge through the hydraulically adjustable opening at the bottom of the crushing chamber.
