Product Overview

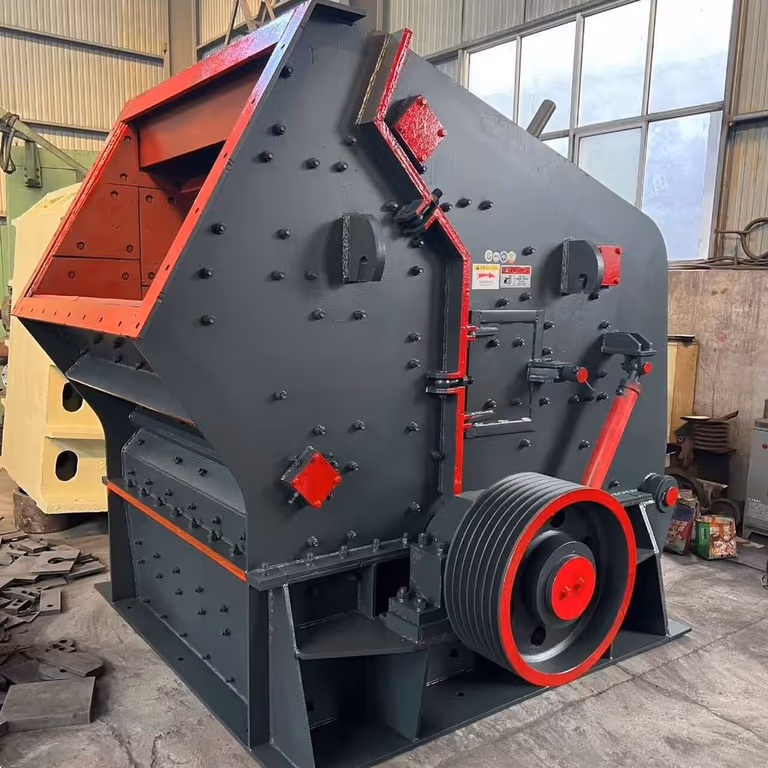

The PF impact crusher is a new type of high-efficiency crushing equipment with small size, simple structure, large crushing ratio, low energy consumption, high production capacity and uniform product size with selective crushing action. It is suitable for processing various coarse, medium and fine materials with compressive strength up to 350 MPa and side length up to 500 mm.
Complete Model Range & Technical Specifications
| Model | Rotor Size (mm) | Feed Opening (mm) | Max Feed (mm) | Capacity (t/h) | Motor (kW) | Weight (t) | Overall Dimensions (mm) |
|---|---|---|---|---|---|---|---|
| PF1007 | 1000*700 | 400*730 | 300 | 30-50 | 37-55 | 9.5 | 2400*1558*2660 |
| PF1010 | 1000*1050 | 400*1080 | 350 | 50-80 | 55-75 | 12.2 | 2400*2250*2620 |
| PF1210 | 1250*1050 | 400*1080 | 350 | 70-120 | 110-132 | 14.9 | 2690*2338*2890 |
| PF1214 | 1250*1400 | 400*1430 | 400 | 130-180 | 132-160 | 18.6 | 2690*2688*2890 |
| PF1310 | 1300*1050 | 490*1170 | 400 | 80-140 | 110-160 | 16.2 | 2780*2478*2855 |
| PF1315 | 1320*1500 | 860*1520 | 500 | 160-250 | 180-250 | 19.3 | 3096*3273*2667 |
| PF1320 | 1320*2000 | 860*2030 | 500 | 300-375 | 250-280 | 33 | 3096*3560*3185 |
| PF1520 | 1500*2000 | 1315*2040 | 700 | 300-500 | 400-450 | 42.8 | 3890*3560*3220 |
Applications
Widely used in cement, electric power, building materials, chemical, coal and metallurgy industries for secondary crushing of limestone, concrete and medium-hard rocks, and for aggregate shaping.
Key Features
- Large crushing ratio and high one-time yield
- Good selective crushing effect with uniform particle size
- Simple structure, small footprint and easy maintenance
- Low energy consumption and high capacity
- Adjustable impact frames for precise product control
Working Principle
Material enters the rotor area and is accelerated by the blow bars, impacting against the impact plates where it is crushed and rebounded for further reduction before discharging through the adjustable outlet.
