Product Overview

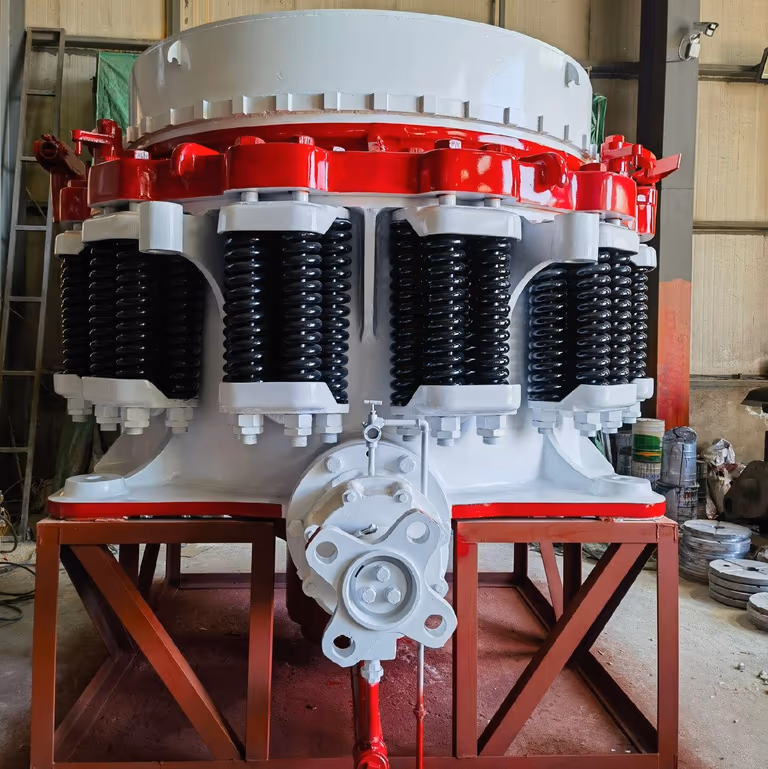

The composite spring cone crusher combines standard, medium and short-head crushing cavities in one reliable spring cone design. It improves rock crushing efficiency with machined conical connections on the mantle and concave, an overload hydraulic cavity-clearing system and a cooling lubrication system. It is suitable for crushing hard rocks with low operating costs.
Complete Model Range & Technical Specifications (PYB/PYZ/PYD)
| Model | Type | Max Feed (mm) | Discharge (mm) | Capacity (t/h) | Motor (kW) | Weight (t) |
|---|---|---|---|---|---|---|
| PYB1200 | Standard | 145 | 20-50 | 110-168 | 110 | 25 |
| PYZ1200 | Medium | 100 | 8-25 | 42-135 | 110 | 25 |
| PYD1200 | Short head | 50 | 3-15 | 18-105 | 110 | 25.5 |
| PYB1750 | Standard | 215 | 25-60 | 280-480 | 155 | 50.5 |
| PYZ1750 | Medium | 185 | 10-30 | 115-320 | 155 | 50.5 |
| PYD1750 | Short head | 85 | 5-15 | 75-230 | 155 | 51.2 |
| PYB2200 | Standard | 300 | 30-60 | 590-1000 | 280 | 84 |
| PYZ2200 | Medium | 230 | 10-30 | 200-580 | 280 | 85 |
| PYD2200 | Short head | 100 | 5-15 | 120-340 | 280 | 85.6 |
PYG rotary-disc ultra-fine type also available for manufactured sand production.
Applications
Used for secondary and tertiary crushing of granite, basalt, iron ore, limestone and other hard materials. The PYG rotary-disc ultra-fine type is especially suitable for manufactured sand production and metal ore with more-crushing-less-grinding operations.
Key Features
- Composite cavity types - standard, medium and short head on the same frame
- Machined conical connection replaces traditional casting for higher efficiency
- Hydraulic cavity clearing and reliable lubrication for stable production
- Low operating cost and long service life
- Easy maintenance and part replacement
